5kWh Battery For Home Energy Storage

Engineered for reliability, this 5kWh Battery delivers 5120Wh usable capacity and supports 4 charging methods—including solar and generator. Its advanced active balancing system enhances overall efficiency and extends lifespan. Built with EV-grade LiFePO4 cells and equipped with multi-layer protections—overvoltage, overcurrent, and short-circuit—it ensures safe, long-term performance. Designed for seamless integration into home energy battery storage systems, the plug-and-play setup and 2x faster self-heating at 32°F make it ideal for any smart home power upgrade.

Features:

  • Ultra-High Usable Energy: 5120Wh capacity powers your entire home.
  • Extreme Power Delivery: 3200W output supports high-load home appliances.
  • Decade-Long Peace of Mind: Backed by 10-year global warranty & support.
  • Smart Bluetooth Control: Real-time battery status anytime, anywhere.
  • Ultra-Safe Design: 20+ protections, no fire or explosion—even under impact.
  • Maximum Depth of Discharge: 99% DOD unlocks full energy potential daily.
  • Lightning-Fast BMS: Proprietary tech ensures optimal efficiency & safety.
  • All-Climate Reliability: Operates from –4°F to 167°F without compromise.



Specification Of 5kWh Battery:

5kWh Battery Parameters:

MODEL NO. MF5000 MF10000
Nominal Voltage 48V (16S)
Nominal Capacity 100AH(5KWH) 200AH(10KWH)
Brand Name MANLY Battery/OEM
Core Material LiFePO4 Battery Cell
Working Voltage Range 40.0V ~ 58.4V
Recommend Charging Voltage 58.2V
Recommend Discharge Cut-off Voltage 40.0V
Continuous Charging Current 50A 100A
Discharging Current (Max. continue) 100A 200A
Protection Functions of BMS Over-charge, over-discharge, over-voltage, over-current, short circuit, temperature, etc.,
Battery balancing management
CAN/RS485/RS232
Battery Size 640*430*185mm 850*625*185mm
Battery Weight About 56KG About 92KG
Waterproof level IP56+
Operating Temperature -20℃~+75℃
Cool method Natural air cooling
Cycle Life ≥5,000 times, 80% of DOD
Warranty 5 years, longer can be negotiated

5kW Battery Inverter Controller System Parameters (Optional):

Model 5KW
AC Mode
Rating input voltage 220/230Vac
Input voltage range (170Vac~280Vac)±2%
(90Vac~280Vac)±2%
Frequency 50Hz/60Hz(Automatic detection)
Frequency range 47±0.3Hz~55±0.3Hz(50Hz);
57±0.3Hz~65±0.3Hz(50Hz)
Overload/short-circuit protection Breaker
Efficiency >95%
Conversion time 10ms(Typical values)
(Bypass and inverter)
AC reverse protection Yes
Maximum bypass load current 40A
Inverter Mode
Output voltage waveform Pure sine wave
Rating output power(VA) 5000
Rating output power(W) 5000
Power factor 1
Rated output voltage 230Vac
Output voltage error ±5%
Output frequency range 50Hz±0.3Hz/60Hz±0.3Hz
Efficiency >92%
(102%
(125%
Overload protection (Load> 150%) ± 10%: Report the error and turn off the output after 5 seconds
Peak power 10000VA
Loaded motor capability 4HP
Rated battery input voltage 48V(Minimum starting voltage 44V)
Battery voltage range 40.0VDC ~ 60VDC ± 0.6VDC (IOU Police Police/Shipping Voltage/Excessive Police Police/Overvoltage Recovery … LCD screen can be set)
Power -saving mode self-consumption Load≤50W
AC Charging
Battery type Lead -acid battery or lithium battery
Maximum charging current 60A
Charging current error ±3Adc
Charging voltage range 40-58Vdc
Over -charging protection The alarm and closed the charging after 1 minute
PV Charging
Maximum PV opening voltage 500Vdc
PV operating voltage range 120-500Vdc
MPPT voltage range 120-450dc
Battery voltage range 40-60Vdc
Maximum PV input power 5500W
Maximum PV charging current 80A
Basic parameters of inverters
Permitted parallel number 1~6
Range of working temperature 15℃ ~55℃
Storage temperature range -25℃ ~60℃
Humidity range 5%~95%
Noise ≤60db
Size 426mm*322*124mm(L*W*D)
Weight 10.8kg

Solar photovoltaic board parameters (Optional):

Configuration 1600W
System Parameters
Type Single crystal silicon
PV maximum power 1600W
System charging time About 5 hours
Solar panel quantity 5PCS
Solar panel bracket Optional
Single Component Parameter
Maximum power 320W
Maximum power point voltage 31.3V
Maximum power point current 10.22A
Open circuit voltage 36.7V
Short-circuit current 10.9A
Maximum system voltage 1000V
Maximum operating current 15A
Size 1600*1036*35mm
Weight 19.8KG





Battery lifespan and warrantySuperior Safety with Grade A+ LiFePO4 Cells

Constructed with premium Grade A+ LiFePO4 cells, these batteries provide outstanding safety and performance. A smart Battery Management System (BMS) can be integrated to monitor and balance individual cells, delivering optimal protection in a wide range of applications.

Extended Battery Lifespan and Warranty

With a Battery lifecycle exceeding 6,000 cycles, these batteries are engineered for long-term reliability and efficiency. Supported by a 10-year warranty, they offer peace of mind and significantly reduce the need for replacements.








Battery protection and safeAdvanced Safety and Protection

Equipped with multiple safety features, including short circuit protection, overcharge and over-discharge protection, overvoltage protection, and overcurrent protection. Balanced circuit design ensures stable performance, while robust construction prevents risks such as explosions or fire, even in extreme conditions.













Custome batteryComprehensive Customization Options

A wide range of customization options is available, including voltage, capacity, current, dimensions, and external design. These options make it possible to tailor the batteries to meet specific requirements across various industries.








Parallel connectionVersatile Connection Configurations

Supports versatile configurations such as 4S, 4P, and 4S4P, allowing for both parallel and series connections. This flexibility ensures compatibility with diverse power and performance needs.










Battery level display bluetooth lithium battery​Optional Smart Monitoring Features

Optional features, including Bluetooth connectivity and battery level displays, provide enhanced monitoring capabilities. These features enable real-time tracking of battery performance, improving efficiency and user convenience.






Introduction Of 5kWh Battery

The MANLY 5kWh battery uses 48V 100Ah LiFePO4 cells for wall-mounted energy storage. These cells are A-grade, ensuring safety, reliability, and high conversion efficiency. They have a high output power and reach 95% energy availability.

This battery reduces size and weight, saving on shipping costs, and is easy to move and install. An optional LCD display shows working status, voltage, and more. It can be easily integrated with major brand inverters and has a plug-and-play design. The 5kWh battery can be connected in parallel up to 8 combinations, catering to various solar and off-grid energy storage systems.

Our LiFePO4 battery 5kwh has a lifespan of over 5,000 cycles and offers short circuit, overcharge, and over-discharge protection. Each 5kwh battery includes a balanced circuit and supports connecting multiple series in parallel. It also features functions like overvoltage and overcurrent protection.

Features and Advantages Of 5kWh Battery:

  1. High cycle life: ≥5000 cycles@80%DOD, effectively reducing the total cost of ownership;
  2. Longer service life: 10~15 years design, with stable chemical composition, not easy to fail;
  3. Inbuilt BMS multiple security protection: The battery management system (BMS) prevents battery over-charge, over-discharge, over-current, over-temperature, short circuit, etc.;
  4. Better storage: 6 months of use due to its extremely low self-discharge and no sulfate risk;
  5. Fast Charge: Superior charge/discharge efficiency, saving time, increasing productivity, and reducing downtime.
  6. Wide temperature use: suitable for a wider range of ambient temperatures: up to +75°C, as low as -20°C.

MANLY 5kWh wall-mounted battery is an efficient and reliable energy storage solution for home and small commercial applications. The battery is compact in design, space-saving, and easy to mount on the wall. It not only provides the ability to store solar or other renewable energy but also provides backup power when the grid goes out, ensuring the continuity of home or commercial operations.

Efficient Energy Storage

MANLY 5kWh wall-mounted battery uses advanced lithium-ion technology with high energy density and an excellent cycle life of over 5,000 times. Compared with traditional lead-acid batteries, lithium batteries are lighter and more efficient, and can store more power in a smaller volume. Its charge and discharge efficiency is as high as over 90%, ensuring that every kilowatt-hour of electricity is maximized.

Safe and Reliable

Safety is at the core of the 5kWh wall-mounted battery design. The battery is equipped with multiple protection mechanisms, including overcharge protection, over-discharge protection, short-circuit protection, and a temperature management system. These features ensure that the battery can operate safely under various working conditions and prevent any potential risks. In addition, the battery’s casing is made of fire-resistant materials, which further enhances its safety.

Smart Battery Management

This battery is equipped with an intelligent battery management system (BMS), which can monitor the status of the battery in real-time, including parameters such as voltage, temperature, and charge and discharge cycles. Through a smartphone or tablet, users can easily view the battery’s operating status and make necessary adjustments. BMS not only improves the battery’s service life but also ensures that the battery works in the best condition and improves overall efficiency.

Wide application

MANLY 5kWh wall-mounted battery is suitable for a variety of application scenarios. For households with solar systems, it can store excess electricity during the day and use it at night or on cloudy days, reducing dependence on the power grid and reducing electricity costs. For households without solar systems, it can serve as a backup power source to provide electricity when the power grid is out of power to ensure basic living needs. Small commercial users can also use this battery to balance peak and valley electricity prices and optimize energy use.

Environmental protection and energy saving

As part of a green energy solution, the MANLY 5kWh wall-mounted battery helps reduce carbon footprint. By storing renewable energy and reducing dependence on fossil fuels, it supports the goal of sustainable development. The long service life and high efficiency of the battery also mean less waste of resources, further promoting environmental protection.

Easy to install and maintain

The installation process of the MANLY 5kWh wall-mounted battery is simple and quick, and it is suitable for a variety of installation environments. The professional installation team can complete the installation in a short time and provide detailed instructions for use. The battery has low maintenance requirements, and users only need to perform basic inspections and maintenance to ensure its long-term stable operation.

In general, the MANLY 5kWh wall-mounted battery is an energy storage product that integrates efficiency, reliability, and safety, which is suitable for the various energy needs of modern families and small commercial users. It can not only improve energy utilization efficiency, but also provide users with a safe backup power supply, and promote the popularization and application of green energy.

Delivery, Packing & Services

Why choose MANLY:

  1. Choosing us is a wise choice for you to save money, time, and worry, high quality and low price, and high-cost performance!
  2. Fast quotation, fast response, fast confirmation, fast shipment
  3. Fast delivery date, high on-time delivery rate, rest assured to buy
  4. Made of industrial Grade original MANLY factory lifepo4 battery cell with Factory price
  5. Excellent materials, advanced equipment, strict quality system
  6. Excellent customer service, as thoughtful before and after-sales

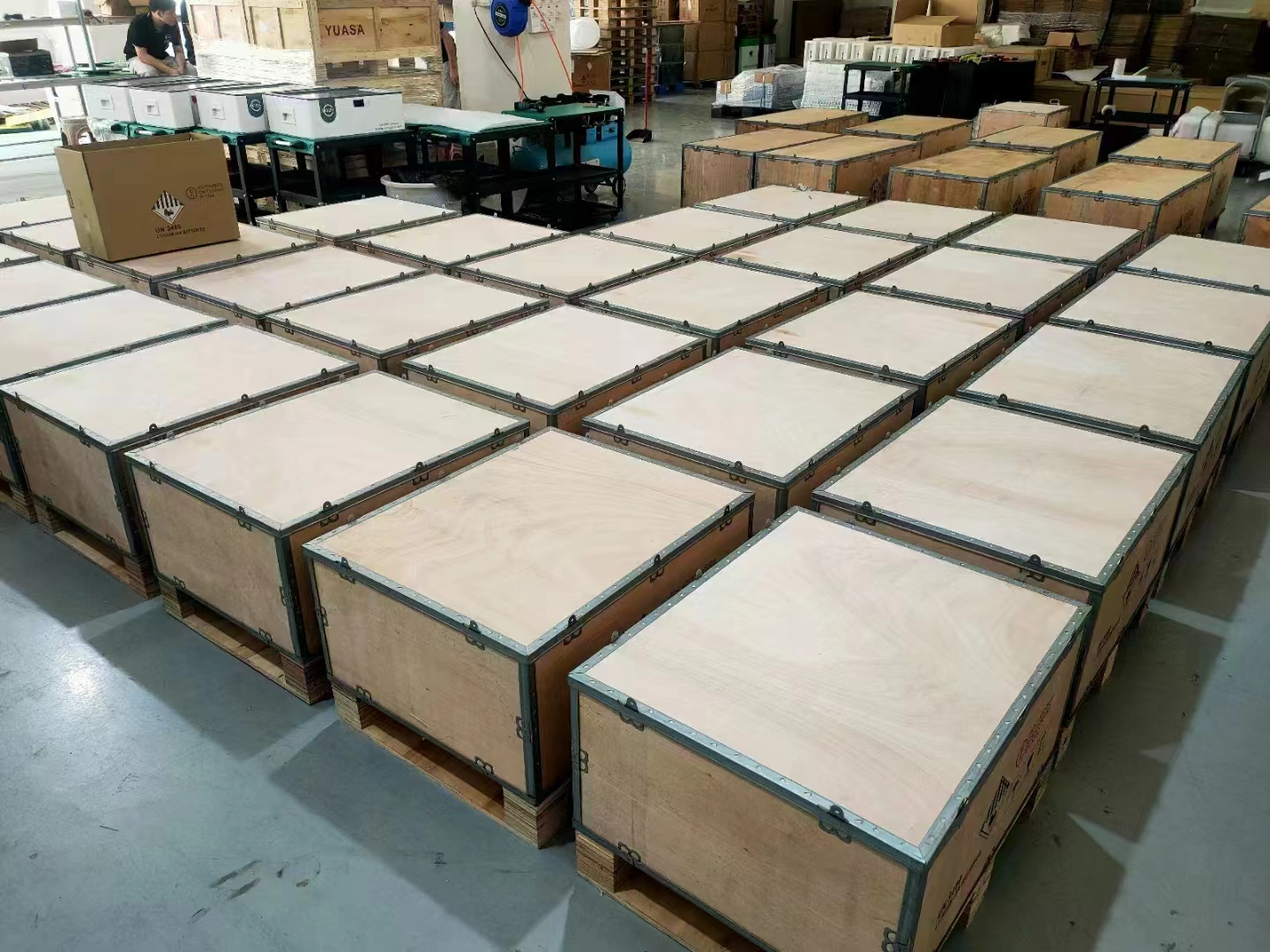

Packing & Delivery:

Packaging:

1) Carton box -pallet container.

2) Packaging also can be customized to customers’ requirements.

Shipping:

1) Shipping time for news samples is 25-30 working days; mass production is 15~20 working days – since the deposit was received and samples confirmed.

2) Sample order is supposed to be shipped by DHL, UPS, FedEx, or TNT, mass order is suggested to ship by sea, we could supply forwarder service if you need.

How to use this battery:

1. Please follow the specifications set in this paragraph for the method of use
2. Please do not short-circuit the battery. This action may cause damage to the battery
3. If the battery is used under extreme conditions, life may be reduced, such as extreme temperature, deep cycle overcharge or over-discharge
4. Batteries should be stored in a cool and dry place
5. In order to prevent the performance of the battery from deteriorating, if the battery needs to be stored for more than 6 months, the battery should be charged and discharged at least once within 6 months
6. Please ensure good ventilation

Our Services:

OEM & ODM can customize according to your request :
  1. Battery voltage, capacity, and dimension.
  2. BMS charging and discharging current.
  3. Connector, case, and wire.
  4. Your own logo eg: silk print.
After-sales service is available :
  1. Respond in 24 hours to any inquiry on our product.
  2. Take action quickly for a normal customer’s claim within 12 hours.
  3. Good after-sales service: We offer 3 years quality warranty for lifepo4 batteries 12.8V 20Ah/50Ah/100Ah/200Ah/500Ah/1000Ah/…
  4. One by one tested before shipment.

FAQ:

1: Is MANLY Battery a trading company or factory?

R: MANLY is a company with its own factory, which integrates research, development, production, and sales.

2:How is the quality of MANLY’s LiFePo4 Battery product?

R: MANLY has 12+ years of experience in the home battery field and is also the authorized supplier of Siemens and BOSCH.

3: Can you do OEM/ODM project?

R: Yes, we have engineers who can help you design and R&D any related products.

4: What’s your MOQ?

R: According to your battery voltage and capacity.

5: What payment terms we can accept?

R: TT/Paypal/West Union/etc.
