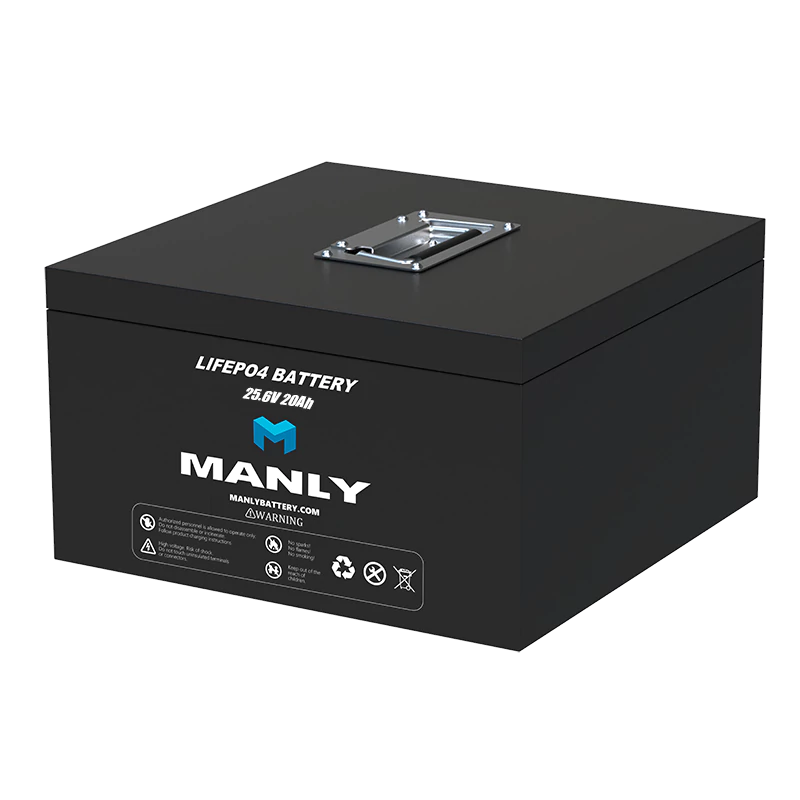

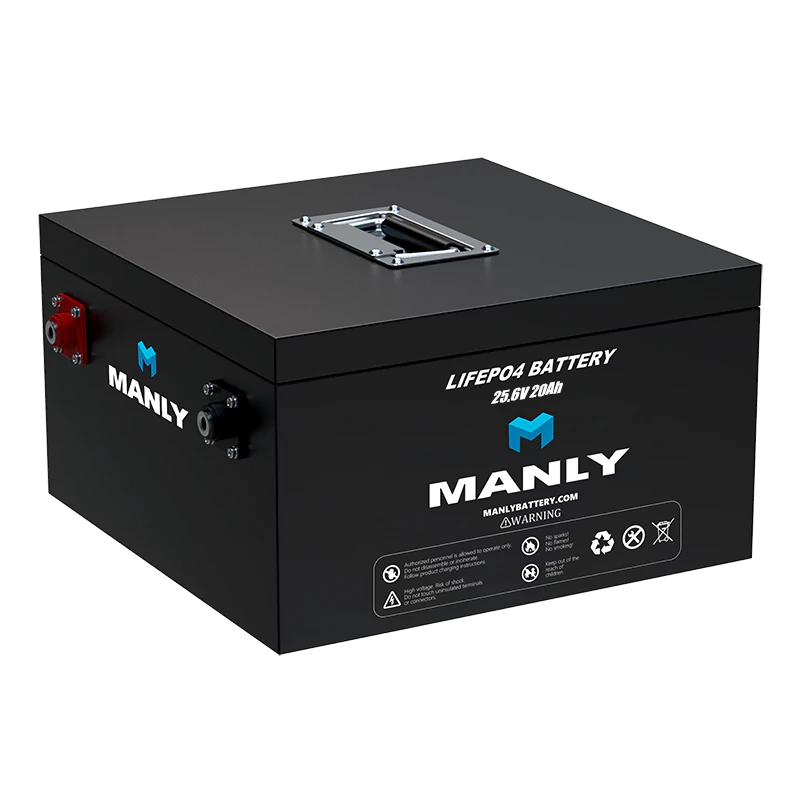

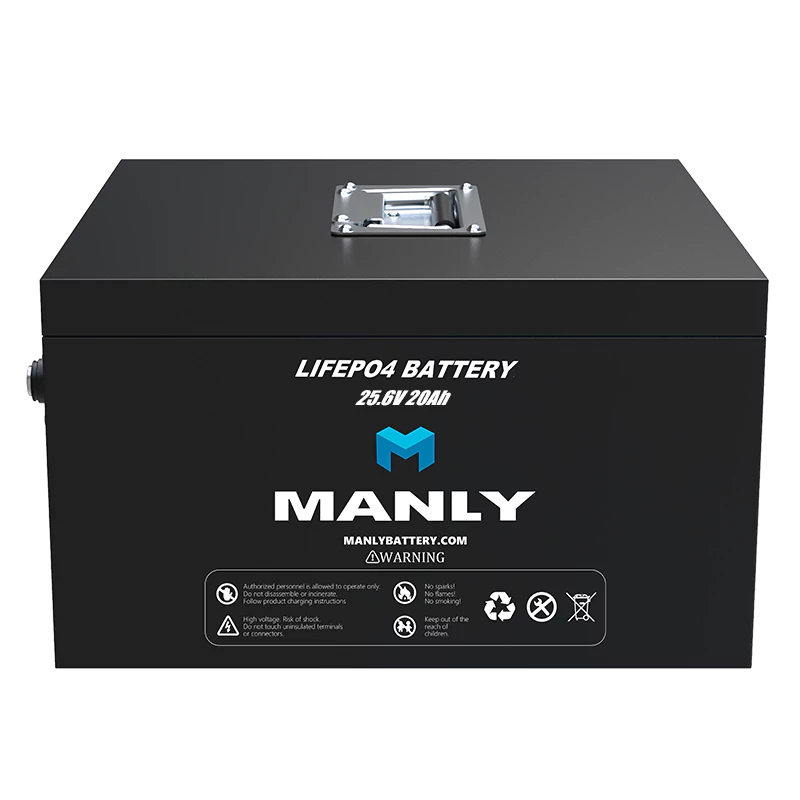

24V 20Ah LiFePO4 Battery
We supplies high performance 24V lithium battery. The 24V 20Ah LiFePO4 battery is supported 3 year warranty and customized battery service. It is ideal for robot, AGV and UPS. A range of certifications are supplied for this battery, such as UN38.3, IEC62133, UL, CE.Features:
- Lightweight Build: Just 4.5kg—perfect for mobile power.
- High Output Current: 20A continuous, 40A peak discharge.
- Extreme Weather Ready: Performs from –4°F to 167°F.
- Long Battery Lifespan: 6000+ deep cycles, worry-free.
- Advanced Safety BMS: Over 6 protections, auto recovery.
- Global Compliance Certified: UL, CE, ROHS, UN38.3 approved.
- Flexible Charging Options: Supports solar, alternator, AC.
Specificaion Of 24V 20Ah LiFePO4 Lithium Battery
24V 20Ah Lithium battery | 24v 20Ah LiFePo4 Battery Is Deep Cycle Rechargeable Battery To Replace the Lead Acid Battery | |||
Electric Characteristics | |||
Battery Type | LiFePO4 | Nominal Capacity | 20Ah |
Nominal Voltage | 24V | Actual Voltage | 25.6V |
Energy | 512Wh | Cycle Life | 5,000+ |
Charging and Discharging Parameters | |||
Full charge volt | 29.2V | Discharge cut-off volt | ≤20V |
Max charge current | 18A | Max continuous discharge current | 20A |
Peak discharge current | 40A@1~3 Seconds | Suggested charge Volt | 29.2V |
Operation Temperature Parameters | |||
Charge | 0 ~ 45℃ | Storage less than 12 months | -20 ~ 25℃ |
Discharge | -20 ~ +75℃ | Storage less than three months | -20 ~ 35℃ |
Recommended | 18 ~ 28℃ | Storage over 12 months | 25 ℃ |
Mechanical Properties | |||
Dimension Length | 197mm | Housing materials | ABS/PVC/Iron/Customized |
Dimension Width | 165mm | Terminal size | M6/M8 optional |
Dimension Height | 170mm | Cell model | 3.2V 20ah/3.2V 6ah |
Weight | About 4.5kg | Configuration | 8S1P/ 8S3P |
BMS function | |||
The built-in intelligent BMS provides charging, discharging, short-circuit, over-current, over-temperature and other protection functions for the battery pack, and the Bluetooth function is optional | |||
Advantage | |||
High safety (no fire, no explosion) | No memory effect | High energy density | Long lifespan over 10 years |
Fast Charge Capability | Waterproof | Individual cell balancing | Easy maintenance |
Introduction Of 24v 20Ah LiFePO4 Lithium Battery
Introducing the 24V 20Ah LiFePO4 battery by Manly Battery, a reliable and efficient power solution. It’s perfect for various applications. This high-quality battery offers a 3 years warranty, ensuring satisfaction and peace of mind. Moreover, we provide 24-hour customer service for prompt assistance.
Our state-of-the-art factory spans 6,500 square meters, enabling the production of top-notch batteries. Specifically, the 24V 20Ah LiFePO4 battery serves as a drop-in replacement for lead-acid batteries. Therefore, it features plug-and-play functionality.
Furthermore, each battery ships with 18-8 stainless steel bolts, brass washers, and stainless steel nuts with nylok inserts. Consequently, installation is easy and connections are secure. We prioritize timely delivery, so we offer Fast Delivery service. Additionally, our Supply Sample Service allows you to evaluate our products before purchase.
In conclusion, choose the 24V 20Ah LiFePO4 battery from Manly Battery for a durable, efficient power solution that lasts.
Features Of 24V 20Ah LiFePO4 Battery:
- Maintenance-free operation;
- The long service life of 10~15 years;
- Inbuilt BMS multiple security protection;
- High-quality lithium iron phosphate batteries, safe and reliable;
- More rechargeable time, longer lifetime, economic and environmental protection.
Delivery, Packing & Services
Why choose MANLY:
- 36 months longer warranty time
- OEM/ODM custom is acceptable without MOQ Request
- Made of industrial Grade original MANLY factory lifepo4 battery cell with Factory price
- With advanced smart BMS (Battery Management System)
Packing & Delivery:
Packaging:
1) Carton box -pallet container.
2) Packaging also can be customized to customers’ requirements.
Shipping:
1) Shipping time for news samples is 25-30 working days; mass production is 15~20 working days – since the deposit was received and samples confirmed.
2) Sample order is supposed to be shipped by DHL, UPS, FedEx, or TNT, mass order is suggested to ship by sea, we could supply forwarder service if you need.
Our Services:
OEM & ODM can customize according to your request :
- Battery voltage, capacity, and dimension.
- BMS charging and discharging current.
- Connector, case, and wire.
- Your own logo eg: silk print.
After-sales service is available :
- Respond in 24 hours to any inquiry on our product.
- Take action quickly for a normal customer’s claim within 12 hours.
- Good after-sales service: We offer 3 years quality warranty for lifepo4 batteries 12.8V 20Ah/50Ah/100Ah/200Ah/500Ah/1000Ah/…
- One by one tested before shipment.
FAQ:
1: Is MANLY Battery a trading company or factory?
R: MANLY is a company with its own factory, which integrates research, development, production, and sales. Our 24V lithium battery is hot-selling now.
2:How about the quality of MANLY’s LiFePo4 Battery product?
R: MANLY has 12+ years of experience in lifepo4 batteries, and is also the authorized supplier of Siemens and BOSCH.
3: Can you do OEM/ODM project?
R: Yes, we have engineers who can help you design and R&D any related products, such as 24V 20Ah lithium battery.
4: What’s your MOQ?
R: According to your battery voltage and capacity.
5: What payment terms we can accept?
R: TT/Paypal/West Union/etc.
