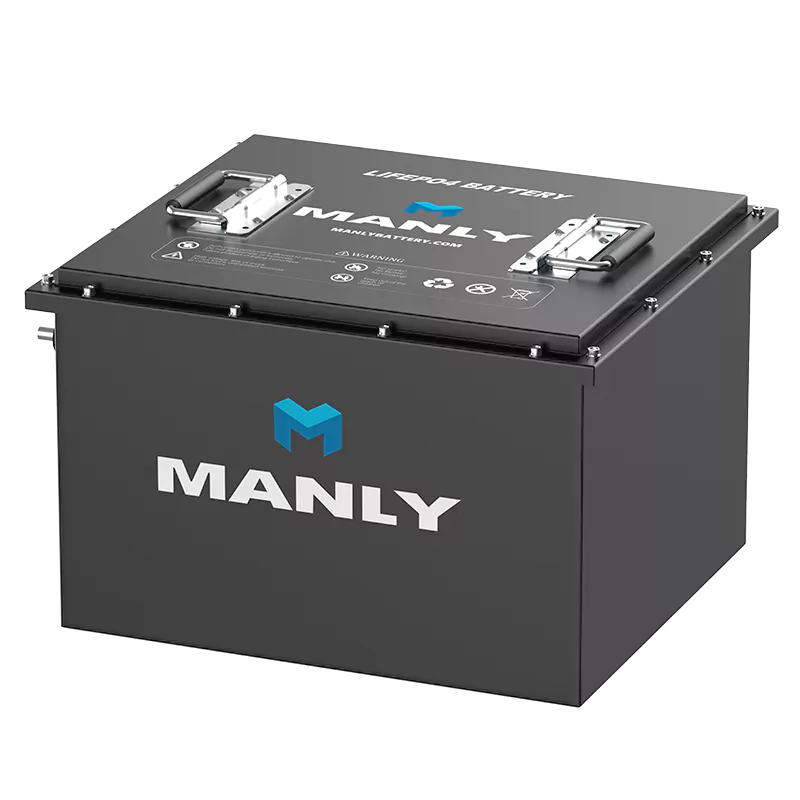

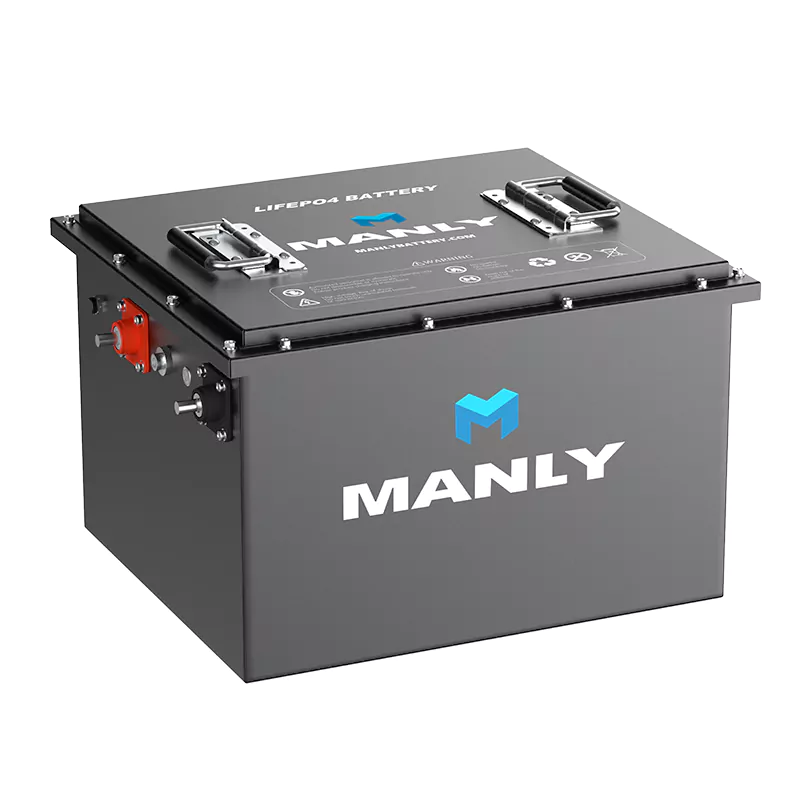

36V Lithium Golf Cart Battery
36V lithium golf cart battery is a high-efficiency battery solution designed for golf carts. Its lightweight and long service life make golf carts more flexible during driving and can support longer use without frequent charging. In addition, lithium batteries have fast charging speed and excellent energy density, providing stable and reliable power, and improving the overall performance of golf carts.Compared with traditional lead-acid batteries, 36V lithium batteries have better durability and lower maintenance costs. They can work normally in extreme weather conditions while reducing environmental impact. With the advancement of technology, more and more golf cart manufacturers are beginning to adopt lithium batteries to meet users' higher demands for endurance and efficiency.Features:
- Low-Temperature Protection: Charge <32°F, discharge <–4°F.
- High Cycle Life: Over 6,000 deep discharge cycles.
- Peak Output Power: 1920W load, 180A continuous discharge.
- Compact Lightweight Design: 40% lighter than lead-acid packs.
- Smart BMS Protections: 20+ safety layers for golf cart use.
- IP67 Waterproof Rating: Withstands dust, rain, and splashes.
- Bluetooth Monitoring: Track status in real-time via app.
- OEM Custom Voltage: Configurable to match any cart system.
36V Lithium Golf Cart Battery Specifications
MODEL NO. | MLP3630M | MLP3650M | MLP36100M |
Nominal Voltage | 38.4V | ||
Ampere-hour Capacity | 30AH | 50AH | 100AH |
Watthour Capacity | 1152Wh | 1920 | 3840Wh |
Brand Name | MANLY Battery/OEM | ||
Cell Type – Chemistry | Prismatic LiFePO4 Battery Cell | ||
Cycles @ 80% DOD | ≥5,000 times | ||
Recommended Charge Voltage | 43.8V(CC/CV) ULTRA FAST 48V MANLY LIFEPO4 BATTERY CHARGER IS AVAILABLE | ||
Discharge-end Voltage | 30.0V | ||
Recommended Charge Current | 6A | 10A | 20A |
Discharging Current (Max. continue) | 50A | 60A | 100A |
Discharging Current (Peak) | 90A(<1S) | 100A(<1S) | 150A(<1S) |
Protection Functions of BMS | Over-charge, over-discharge, over-voltage, over-current, short circuit, temperature, etc., | ||
Battery balancing management | |||
Optional communication protocol (CAN/RS485/Bluetooth etc.) | |||
Case Material | Steel Case | ||
Battery Size(L*W*H) | 320*180*260mm OEM | 400*200*280mm OEM | 520*270*280mm OEM |
Battery Weight | About 12KG | About 19.8KG | About 42.1KG |
Battery Connector | Anderson/Screw Terminals/OEM | ||
Waterproof level | IP65+ | ||
Communication Protocol | RS485, CAN, Bluetooth, or others can be added upon request | ||
Charge Temperature | 0℃~+45℃ | ||
Operating Temperature | -20℃~+70℃ (-4℉~158°F) | ||
Warranty | 5 years, longer can be negotiated |
MANLY 36v Lithium Golf Cart Battery Overview
MANLY 36V lithium battery golf cart battery is a modern high-performance power solution, widely used in electric vehicles such as golf carts. Compared with traditional lead-acid batteries, MANLY’s lithium batteries have shown significant advantages in energy density, life, charging speed and weight. With the continuous advancement of technology, lithium batteries have become the mainstream choice for golf carts.
High energy density and long battery life
The high energy density of lithium batteries enables them to store more energy at the same volume and weight, which directly improves the endurance of golf carts. Golf carts using 36V lithium batteries can travel longer distances, reducing the need for frequent charging, allowing users to focus on enjoying the time on the golf course without worrying about insufficient power.
Lightweight design and efficient power
Lithium batteries are much lighter than lead-acid batteries, which has a positive impact on the overall performance of golf carts. The lightweight design not only reduces the weight of the golf cart and reduces energy consumption, but also improves the acceleration and climbing ability of the vehicle. The lighter battery makes the golf cart more flexible and comfortable to drive, while reducing pressure and wear on the lawn.
Fast charging and efficient utilization
Another major advantage of the MANLY 36V lithium battery is its fast charging capability. Compared with lead-acid batteries, which often require 8-12 hours of charging time, lithium batteries usually only need 3-4 hours to be fully charged. This greatly improves the utilization efficiency of the battery, allowing the golf cart to resume use more quickly, especially for occasions that require frequent use.
Battery Management System (BMS) and Safety
The advanced battery management system (BMS) is an important part of the MANLY36V lithium battery. BMS can monitor the battery’s voltage, current, temperature, and other parameters in real-time, and provide multiple protection measures such as overcharge, over-discharge, overheating, and short circuit. This not only extends the service life of the battery but also greatly improves its safety, ensuring that the golf cart can operate stably in various environments.
Low maintenance cost and environmental advantages
The low maintenance requirement of lithium batteries is also one of its important advantages. Unlike lead-acid batteries, which require regular inspection and replenishment of electrolytes, lithium batteries require almost no maintenance, saving time and money. In addition, lithium batteries have a longer service life, usually 3-5 times that of lead-acid batteries, reducing the frequency and cost of battery replacement. Lithium batteries have less impact on the environment during production and scrapping, and their higher energy efficiency and renewability make them a more environmentally friendly choice.
Wide range of application scenarios
MANLY 36V lithium battery is not only suitable for golf carts, but also widely used in other electric vehicles such as electric scooters, electric bicycles, and light electric vehicles. Its high performance and versatility make lithium batteries an ideal power solution for modern electric transportation.
In general, MANLY 36V lithium battery golf cart battery provides excellent performance and user experience for golf carts with its high energy density, lightweight design, fast charging, efficient power, and safety and reliability. Its low maintenance requirements and environmental advantages further highlight its status as an ideal power source for future electric transportation. Choosing MANLY 36V lithium battery is undoubtedly a wise choice to improve the efficiency and sustainability of golf carts.
Delivery, Packing & Services
Why choose MANLY Battery:
- 36 months longer warranty time
- OEM/ODM custom is acceptable without MOQ Request
- Made of industrial Grade original MANLY factory lifepo4 battery cell with Factory price
- With advanced smart BMS (Battery Management System)
Packing & Delivery:
Packaging:
1) Carton box -pallet container.
2) Packaging also can be customized to customers’ requirements.
Shipping:
1) Shipping time for news samples is 15-20 working days; mass production is 10~20 working days – since the deposit was received and samples confirmed.
2) Sample order is supposed to be shipped by DHL, UPS, FedEx, or TNT, mass order is suggested to ship by sea, we could supply forwarder service if you need.
Our Services:
OEM & ODM can customize according to your request :
- Battery voltage, capacity, and dimension.
- BMS charging and discharging current.
- Connector, case, and wire.
- Your own logo eg: silk print.
After-sales service is available :
- Respond in 24 hours to any inquiry on our product.
- Take action quickly for a normal customer’s claim within 12 hours.
- Good after-sales service: We offer 3 years quality warranty for lifepo4 batteries 12.8V 20Ah/50Ah/100Ah/200Ah/500Ah/1000Ah/…
- One by one tested before shipment.
FAQ
1: Is MANLY Battery a trading company or factory?
R: MANLY is a company with its own factory, which integrates research, development, production, and sales.
2: How about the quality of MANLY’s LiFePo4 Battery product?
R: MANLY has 12+ years of experience in lifepo4 battery, and is also the authorized supplier of Siemens and BOSCH.
3: Can you do an OEM/ODM project?
R: Yes, we have engineers who can help you design and R&D any related products.
4: What’s your MOQ?
R: According to your battery voltage and capacity.
5: What payment terms we can accept?
R: TT/Paypal/West Union/etc.
