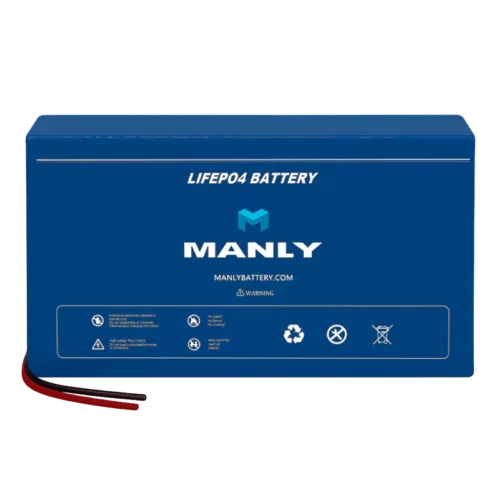

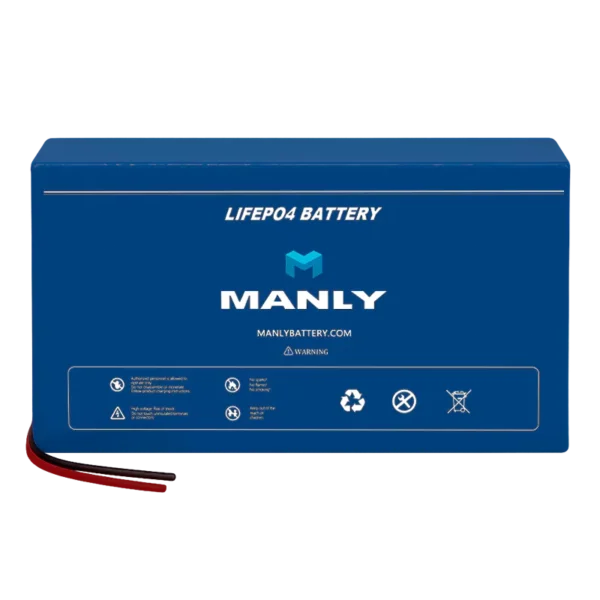

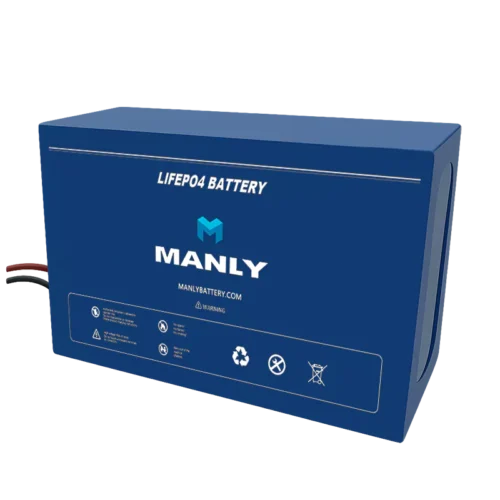

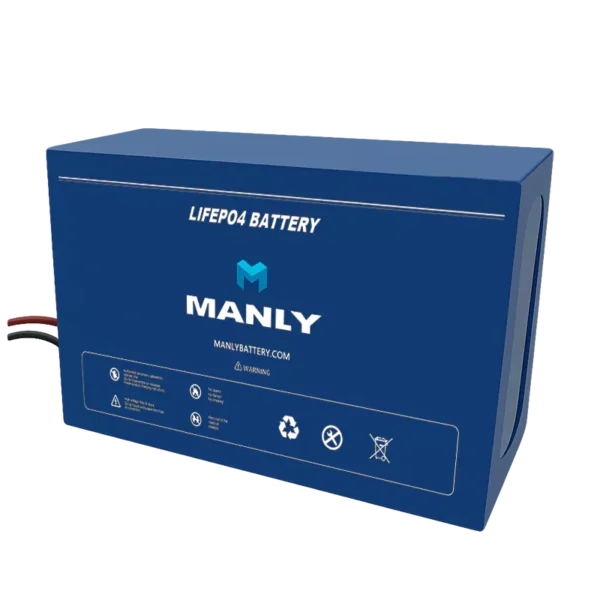

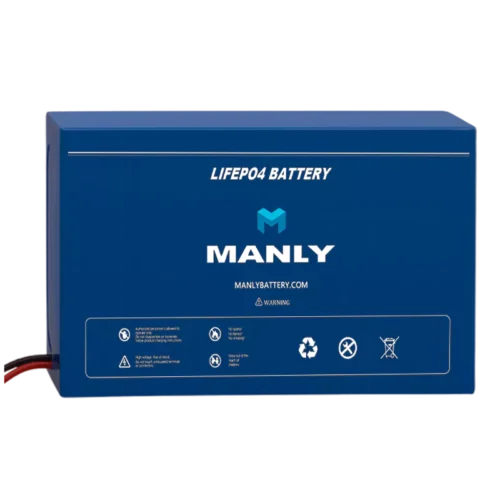

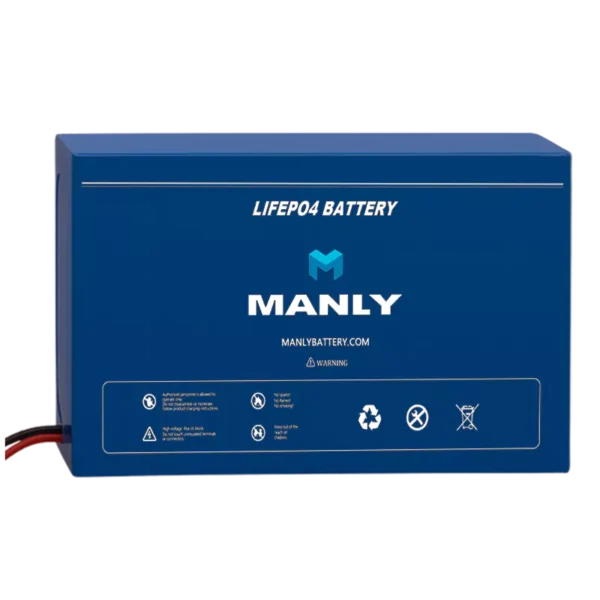

24v Lithium Solar Deep Cycle Rechargeable Battery for Solar Applications
24V 42Ah Solar Battery
1. Model Number: MLP2442S
2. Nominal Capacity: 42Ah
3. Nominal Voltage: 25.6V
4. MAX Charge Voltage: 29.2V
5. MAX Charge Current: 21A
6. Customization Support: Including voltage, capacity, current, size, appearance, etc.
LiFePO4 does not contain any harmful heavy metal elements, pollution-free both in production and actual use.
Long Cycle Life:
This battery is with over 5000-time charge and discharge cycle life, after that, the capacity left is still 80% of the original value, the self-discharge rate is much lower than the li-ion battery and lead-acid battery;
Light in weight:
LiFePO4 substitution battery is only approx. 1/3 of lead acid battery in weight;
Customized &Save Time:
Battery cells, size, capacity, voltage, connector…most parameters can be changed according to your request. You don’t need to take too much time to search for an existing model
1)Energy Storage: PV Energy Storage, UPS, backup, power station;
2)EV: Golf trolleys, Electric scooters;
3)Solar System: Solar Home System, Solar Street Light, Solar CCTV
4)Telecommunications Base Stations;
5)Others: Emergency Light, Miner’s lamp, portable power supply, digital products, Roboticsetc, AGV/RGV/AMR, etc.
- Maintenance-free operation;
- The long service life of 10~15 years;
- Inbuilt BMS multiple security protection;
- High-quality lithium iron phosphate batteries, safe and reliable;
- More rechargeable time, longer lifetime, economic and environmental protection.
|24V 42Ah LiFePo4 Deep Cycle Rechargeable Battery for Solar Applications|
|Battery Type||LiFePo4||Nominal Capacity||42Ah|
|Nominal Voltage||24V||Actual Voltage||25.6V|
|Charging and Discharging Parameters|
|Full charge volt||29.2V||Discharge cut-off volt||20V|
|Max charge current||21A||Max continuous discharge current||42A|
|Peak discharge current||80A@1~3 Seconds||Suggested charge Volt||29.2V|
|Operation Temperature Parameters|
|Charge||0~45℃||Storage less than 12 months||-20 ~25℃|
|Discharge||-20~60℃||Storage less than three months||-20~35℃|
|Recommended||18~28℃||Storage over 12 months||25 ℃|
|Protect battery from Overcharge, Over-discharge, Over-current, Short circuit|
|High safety (no fire, no explosion)||No memory effect||High energy density||Long lifespan|
|Fast Charge Capability||Waterproof||Individual cell balancing||Easy maintenance|
Why choose MANLY:
- 36 months longer warranty time
- OEM/ODM custom is acceptable without MOQ Request
- Made of industrial Grade original MANLY factory lifepo4 battery cell with Factory price
- With advanced smart BMS (Battery Management System)
Packing & Delivery:
1) Carton box -pallet-container.
2) Packaging also can be customized by customers’ requirements.
1) Shipping time for news sample is 25-30 working days; mass production is 15~20 working days – since deposit received and samples confirmed.
2) Sample order is supposed to be shipped by DHL, UPS, FedEx, or TNT, mass order is suggested to ship by sea, we could supply forwarder service if you need.
OEM & ODM can customize according to your request :
- Battery voltage, capacity, and dimension.
- BMS charging and discharging current.
- Connector, case, and wire.
- Your own logo eg: silk print.
After-sales service is available :
- Respond in 24 hours to any inquiry on our product.
- Take action quickly for a normal customers’ claim within 12 hours.
- Good after-sales service: We offer 3 years quality warranty for lifepo4 batteries 12.8V 20Ah/50Ah/100Ah/200Ah/500Ah/1000Ah/…
- One by one tested before shipment.
1: Is MANLY Battery a trading company or factory?
R: MANLY is a company with its own factory, which integrates research, development, production, and sales.
2:How about is the quality of MANLY’s LiFePo4 Battery product?
R: MANLY has 12+ years of experience in lifepo4 battery, is also the authorized supplier of Siemens and BOSCH.
3: Can you do OEM/ODM project?
R: Yes, we have engineers who can help you design and R&D any related products.
4: What’s your MOQ?
R: According to your battery voltage and capacity.
5: What payment terms we can accept?
R: TT/Paypal/West Union/etc.
Remark: Our products are customized, so the main data can be changed by customer’s requirements.
