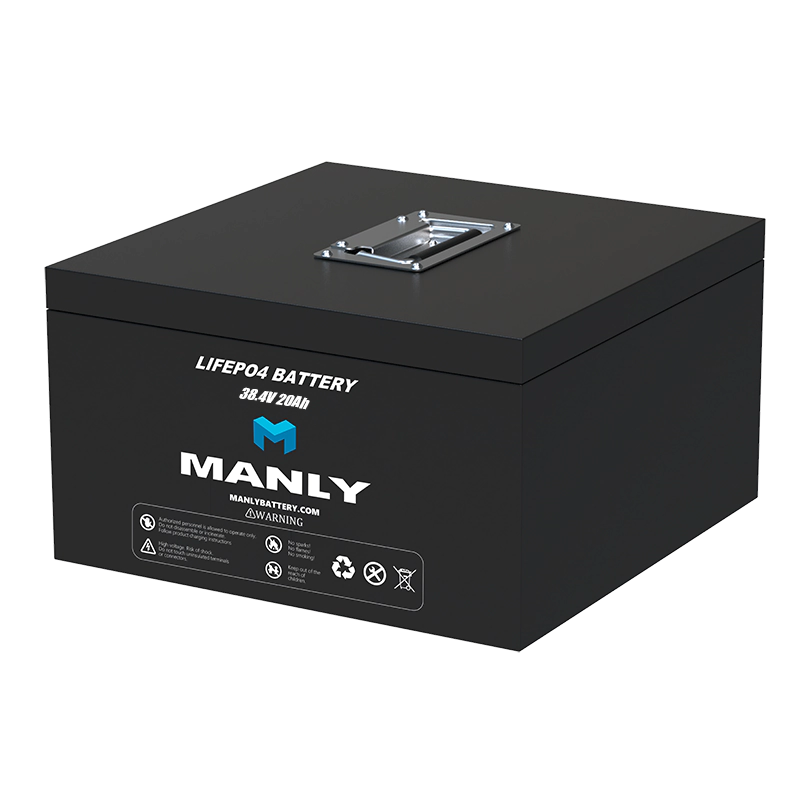

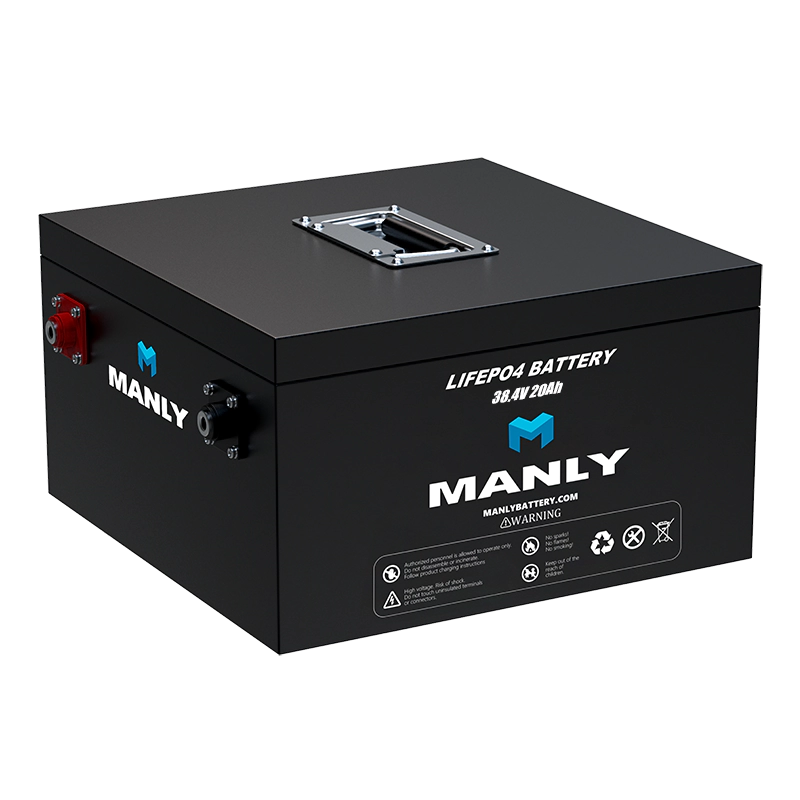

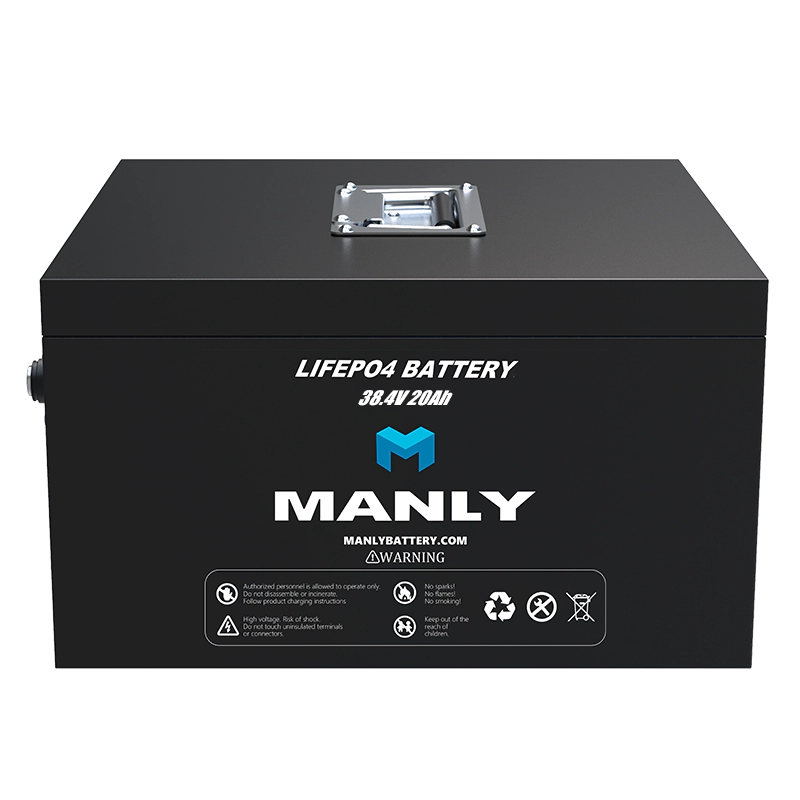

36V 20Ah Lithium Ion Battery
MANLY 36V 20Ah lithium ion battery comes with a 10-year warranty, personalized service, and a range of certifications. The 36V 20Ah lithium ion battery is a lead-acid replacement, ideal for e-scooter, e-bicycle and e-bike.Features:
- 99% Depth of Discharge: Maximizes every amp with zero waste.
- High Discharge Power: Supports up to 768W continuous output.
- Built-in BMS Protections: 20+ safeguards ensure ultimate battery safety.
- Ultra-Rugged Durability: Withstands vibration, salt, and heavy impacts.
- Plug-and-Play Upgrade: Drop-in replacement with zero setup hassle.
- Maintenance-Free Design: No water, no corrosion, no downtime.
- Born for Outdoor Use: Ideal for fish finders, kayaks, solar camping.
The MANLY Battery facility has the impressive capability to produce over 1.2 million battery cells daily and assemble as many as 3,000 batteries per day. The popular 36V 20Ah lithium ion battery is ideal for various applications, such as e-bike, e-scooter, and e-bicycle. This dependable 36V 20Ah lithium ion battery comes with a 3-year warranty, guaranteeing sustained performance, durability, and reliable customer support. We offer customized battery solutions for the 36V 20Ah lithium ion battery.
Features Of 36V 20Ah Lithium Ion Battery:
- Maintenance-free operation;
- The long service life of 10~15 years;
- Inbuilt BMS multiple security protection;
- High-quality lithium iron phosphate batteries, safe and reliable;
- More rechargeable time, longer lifetime, economic and environmental protection.
Specification Of 36V 20Ah Lithium Ion Battery:
| 36v 20ah Lithium Ion Battery | 36v 20ah LiFePo4 Battery Is Deep Cycle Rechargeable Battery To Replace the Lead Acid Battery | |||
| Electric Characteristics | |||
| Battery Type | LiFePo4 | Nominal Capacity | 20Ah |
| Nominal Voltage | 36V | Actual Voltage | 38.4V |
| Energy | 768Wh | Cycle Life | 5,000+ |
| Charging and Discharging Parameters | |||
| Full charge volt | 43.8V | Discharge cut-off volt | ≤30V |
| Max charge current | 10A | Max continuous discharge current | 20A |
| Peak discharge current | 40A@1~3 Seconds | Suggested charge Volt | 43.8V |
| Operation Temperature Parameters | |||
| Charge | 0 ~ 45℃ | Storage less than 12 months | -20 ~ 25℃ |
| Discharge | -20 ~ +75℃ | Storage less than three months | -20 ~ 35℃ |
| Recommended | 18 ~ 28℃ | Storage over 12 months | 25 ℃ |
| Mechanical Properties | |||
| Dimension Length | 328mm | Housing materials | ABS/PVC/Customized |
| Dimension Width | 175mm | Terminal size | M6/M8 optional |
| Dimension Height | 230mm | Cell model | 3.2V 20Ah/3.2V 6Ah |
| Weight | About 18.8kg | Configuration | 12S1P/ 12S3P |
| BMS function | |||
| The built-in intelligent BMS provides charging, discharging, short-circuit, over-current, over-temperature, and other protection functions for the battery pack, and the Bluetooth function is optional | |||
| Advantage | |||
| High safety (no fire, no explosion) | No memory effect | High energy density | Long lifespan over 10 years |
| Fast Charge Capability | Waterproof | Individual cell balancing | Easy maintenance |
Why choose MANLY:
- 36 months longer warranty time
- OEM/ODM custom is acceptable without MOQ Request
- Made of industrial Grade original MANLY factory lifepo4 battery cell with Factory price
- With advanced smart BMS (Battery Management System)
Packing & Delivery:
Packaging:
1) Carton box -pallet container.
2) Packaging also can be customized to customers’ requirements.
Shipping:
1) Shipping time for news samples is 25-30 working days; mass production is 15~20 working days – since the deposit received and samples confirmed.
2) Sample order is supposed to be shipped by DHL, UPS, FedEx, or TNT, mass order is suggested to ship by sea, we could supply forwarder service if you need.
Our Services:
OEM & ODM can customize according to your request :
- Battery voltage, capacity, and dimension.
- BMS charging and discharging current.
- Connector, case, and wire.
- Your own logo eg: silk print.
After-sales service is available :
- Respond in 24 hours to any inquiry on our product.
- Take action quickly for a normal customer’s claim within 12 hours.
- Good after-sales service: We offer 3 years quality warranty for lifepo4 batteries 12.8V 20Ah/50Ah/100Ah/200Ah/500Ah/1000Ah/…
- One by one tested before shipment.
FAQ:
1: Is MANLY Battery a trading company or factory?
R: MANLY is a company with its own factory, which integrates research, development, production, and sales.
2:How about the quality of MANLY’s LiFePo4 Battery product?
R: MANLY has 12+ years of experience in lifepo4 batteries, and is also the authorized supplier of Siemens and BOSCH.
3: Can you do OEM/ODM project?
R: Yes, we have engineers who can help you design and R&D any related products.
4: What’s your MOQ?
R: According to your battery voltage and capacity.
5: What payment terms we can accept?
R: TT/Paypal/West Union/etc.
