500W/1000W/1500W/2000W/3000W/4000W/5000W/6000W All-In-One Power Supply For Home Energy Storage

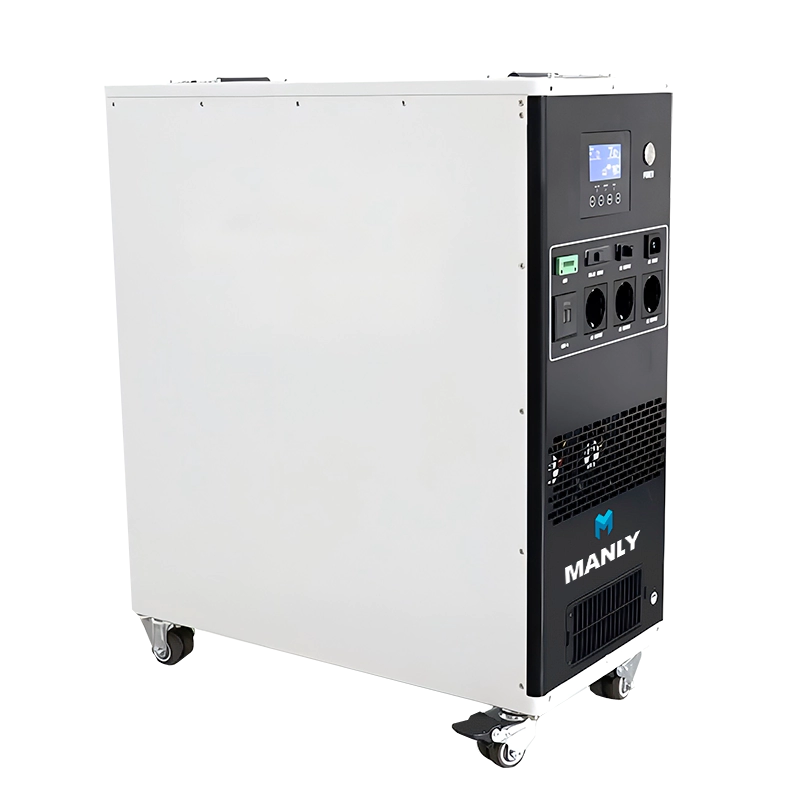

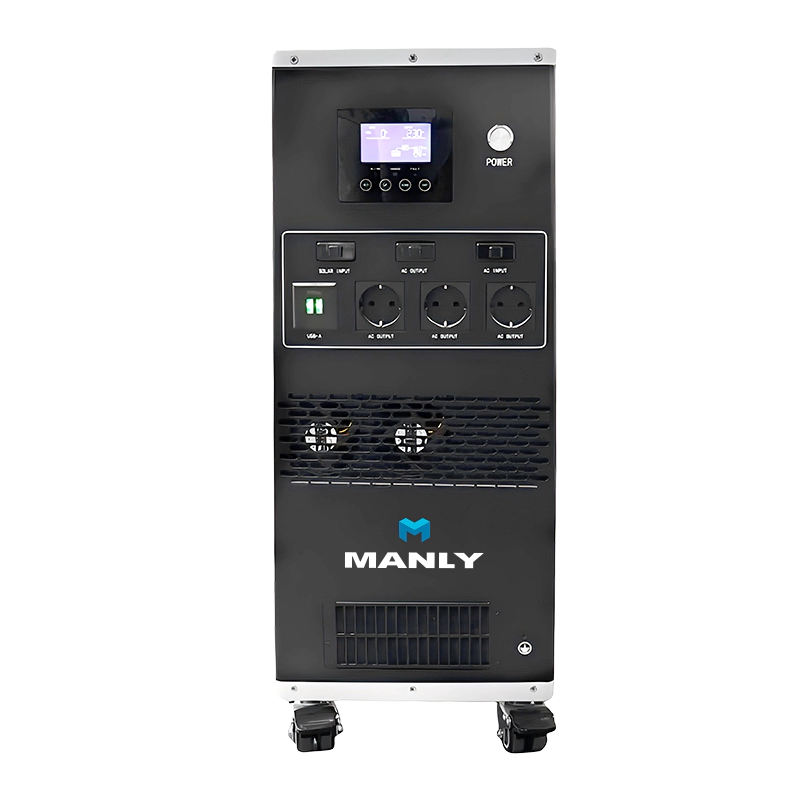

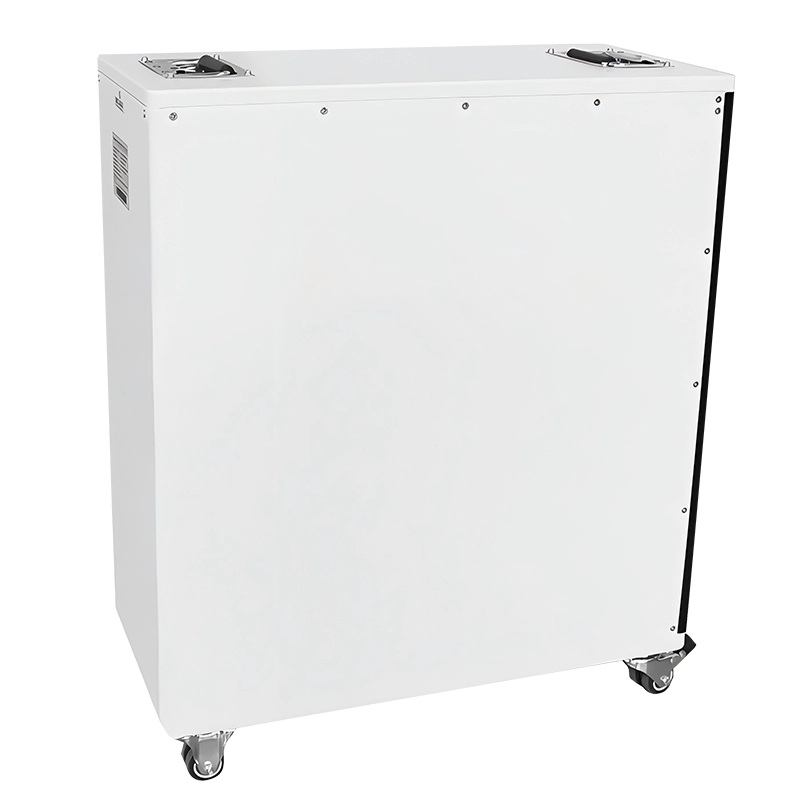

All-In-One Power Supply For Home Energy Storage
Manly Battery specializes in the provision of high-performance home energy storage. We offer 10 years warranty, IP67 water proof and Several certifications.
All-in-one power supply boasts a lifespan of more than 8000 cycles. They also come with short circuit protection. Additionally, there’s overcharge protection. Over-discharge protection is another key feature. All-in-one power supply also includes a balanced circuit. Importantly, you can connect multiple series in parallel.
1. Model Number: MF500/ MF1000/ MF1500/ MF2000/ MF3000/ MF4000/ MF5000/ MF6000
2. Nominal Capacity: 500W/1000W/1500W/2000W/3000W/4000W/5000W/6000W
3. Nominal Voltage: 12V/24V/48V
4. MAX Charge Voltage: 150V
5. MAX Charge Current: 30A~60A
6. Customization Support: Including voltage, capacity, current, size, appearance, etc.
All-In-One Power Supply does not contain any harmful heavy metal elements, pollution-free both in production and actual use.
Long Cycle Life:
All-In-One Power Supply is built by LiFePO4 battery that is with over 5000-time charge and discharge cycle life, after that, the capacity left is still 80% of the original value, the self-discharge rate is much lower than the li-ion battery and lead-acid battery;
Light in weight:
All-In-One Power Supply is built by LiFePO4 battery which is only approx. 1/3 of lead acid battery in weight;
Customized &Save Time:
Battery cells, size, capacity, voltage, connector…most parameters can be changed according to your request. You don’t need to take too much time to search for an existing model
Application All-In-One Power Supply
1)Solar System: Solar Home System, Solar Street Light, Solar CCTV
2)Energy Storage: PV Energy Storage, UPS, backup, power station
3)Telecommunications Base Stations
This all-in-one power supply uses a 48V 100Ah LiFePO4 battery for home energy storage. Additionally, you can stack several 5kWh Home Batteries. It employs original A-grade LiFePO4 lithium iron phosphate battery cells. Importantly, the battery boasts good safety and high reliability. It also offers high conversion efficiency and powerful output. Notably, its available energy ratio reaches up to 95% availability.
This significantly reduces the product size and weight. Consequently, all-in-one power supply saves on shipping costs and facilitates movement and installation. An optional LCD displays the working status, voltage, sequence times, and more. Impressively, it’s compatible with inverters from major brands. Featuring an integrated wall-mounted body design, it’s plug-and-play and easy to set up.
You can connect the battery packs in parallel, with a maximum of 8 combinations. Ultimately, this allows it to meet the needs of various solar home and off-grid energy storage systems of different scales.
Features and Advantages Of All-In-One Power Supply For Home Energy Storage:
- High cycle life: ≥5000 cycles@80%DOD, effectively reducing the total cost of ownership;
- Longer service life: 10~15 years design, with stable chemical composition, not easy to fail;
- Inbuilt BMS multiple security protection: The battery management system (BMS) prevents battery over-charge, over-discharge, over-current, over-temperature, short circuit, etc.;
- Better storage: 6 months of use due to its extremely low self-discharge and no sulfate risk;
- Fast Charge: Superior charge/discharge efficiency, saving time, increasing productivity, and reducing downtime.
- Wide temperature use: suitable for a wider range of ambient temperatures: up to +75°C, as low as -20°C.
Specification Of All-In-One Power Supply For Home Energy Storage:
|System capacity||12V 50AH
|Battery type||Lithium iron phosphate battery|
|Input Voltage Range||140-275V|
|Output Voltage||110V/ 220-240VAC|
|Output Wave||Sine Wave|
|working model||01:City power priority 02:Energy saving mode 03:solar power priority|
|Max. PV Power||360W||720W||960W||1500W||3000W||3000W||3000W||3000W|
|Range Of Charging Voltage||34V-150V||34V-150V||34V-150V||34V-150V||65V-150V||65V-150V||65V-150V||65V-150V|
|Rated Charge Current||30A||30A||30A||60A||60A||60A||60A||60A|
|Voltage For Overcharge Protection||14.2VDC||28.4VDC||28.4VDC||28.4VDC||56.8VDC||56.8VDC||56.8VDC||56.8VDC|
|Voltage For Overcharge Recovery||14VDC||28VDC||28VDC||28VDC||56VDC||56VDC||56VDC||56VDC|
|Voltage For Floating Charge||13.7VDC||27.4VDC||27.4VDC||27.4VDC||54.8VDC||54.8VDC||54.8VDC||54.8VDC|
|Voltage For High Voltage Protection||16VDC||32VDC||32VDC||32VDC||64VDC||64VDC||64VDC||64VDC|
|High Voltage Recovery Voltage||15.2VDC||30.2VDC||30.2VDC||30.2VDC||60VDC||60VDC||60VDC||60VDC|
|Low Voltage Recovery Voltage||12.6VDC||25.2VDC||25.2VDC||25.2VDC||51VDC||51VDC||51VDC||51VDC|
|Low Voltage Protecton Voltage||11VDC||22VDC||22VDC||22VDC||44VDC||44VDC||44VDC||44VDC|
|5VDC USB Output||2pcs*2A||2pcs*2A||2pcs*2A||2pcs*2A||2pcs*2A||2pcs*2A||2pcs*2A||2pcs*2A|
|12VDC Output Ports||2pcs*2A||2pcs*2A||2pcs*2A||2pcs*2A||2pcs*2A||2pcs*2A||2pcs*2A||2pcs*2A|
|Low Voltage Protecton Voltage||11VDC||22VDC||22VDC||22VDC||43VDC||43VDC||43VDC||43VDC|
|Heat Dissipation/Cooling||Temperature control by intelligent exhaust fan|
|Display||Digital LCD||Digital LCD||Digital LCD||Digital LCD||Digital LCD||Digital LCD||Digital LCD||Digital LCD|
Why choose MANLY:
- Choosing us is a wise choice for you to save money, time, and worry, high quality and low price, and high-cost performance!
- Fast quotation, fast response, fast confirmation, fast shipment
- Fast delivery date, high on-time delivery rate, rest assured to buy
- Made of industrial Grade original MANLY factory lifepo4 battery cell with Factory price
- Excellent materials, advanced equipment, strict quality system
- Excellent customer service, as thoughtful before and after-sales
Packing & Delivery:
1) Carton box -pallet container.
2) Packaging also can be customized to customers’ requirements.
1) Shipping time for news samples is 25-30 working days; mass production is 15~20 working days – since the deposit was received and samples confirmed.
2) Sample order is supposed to be shipped by DHL, UPS, FedEx, or TNT, mass order is suggested to ship by sea, we could supply forwarder service if you need.
How to use this 5kWh home battery:
1. Please follow the specifications set in this paragraph for the method of use
2. Please do not short-circuit the battery. This action may cause damage to the battery
3. If the battery is used under extreme conditions, life may be reduced, such as extreme temperature, deep cycle overcharge or over-discharge
4. Batteries should be stored in a cool and dry place
5. In order to prevent the performance of the battery from deteriorating, if the battery needs to be stored for more than 6 months, the battery should be charged and discharged at least once within 6 months
6. Please ensure good ventilation
OEM & ODM can customize according to your request :
- Battery voltage, capacity, and dimension.
- BMS charging and discharging current.
- Connector, case, and wire.
- Your own logo eg: silk print.
After-sales service is available :
- Respond in 24 hours to any inquiry on our product.
- Take action quickly for a normal customer’s claim within 12 hours.
- Good after-sales service: We offer 3 years quality warranty for lifepo4 batteries 12.8V 20Ah/50Ah/100Ah/200Ah/500Ah/1000Ah/…
- One by one tested before shipment.
1: Is MANLY Battery a trading company or factory?
R: MANLY is a company with its own factory, which integrates research, development, production, and sales.
2:How is the quality of MANLY’s LiFePo4 Battery product?
R: MANLY has 12+ years of experience in the home battery field and is also the authorized supplier of Siemens and BOSCH.
3: Can you do OEM/ODM project?
R: Yes, we have engineers who can help you design and R&D any related products.
4: What’s your MOQ?
R: According to your battery voltage and capacity.
5: What payment terms we can accept?
R: TT/Paypal/West Union/etc.
Remark: Our products are customized, so the main data can be changed by customer’s requirements.
